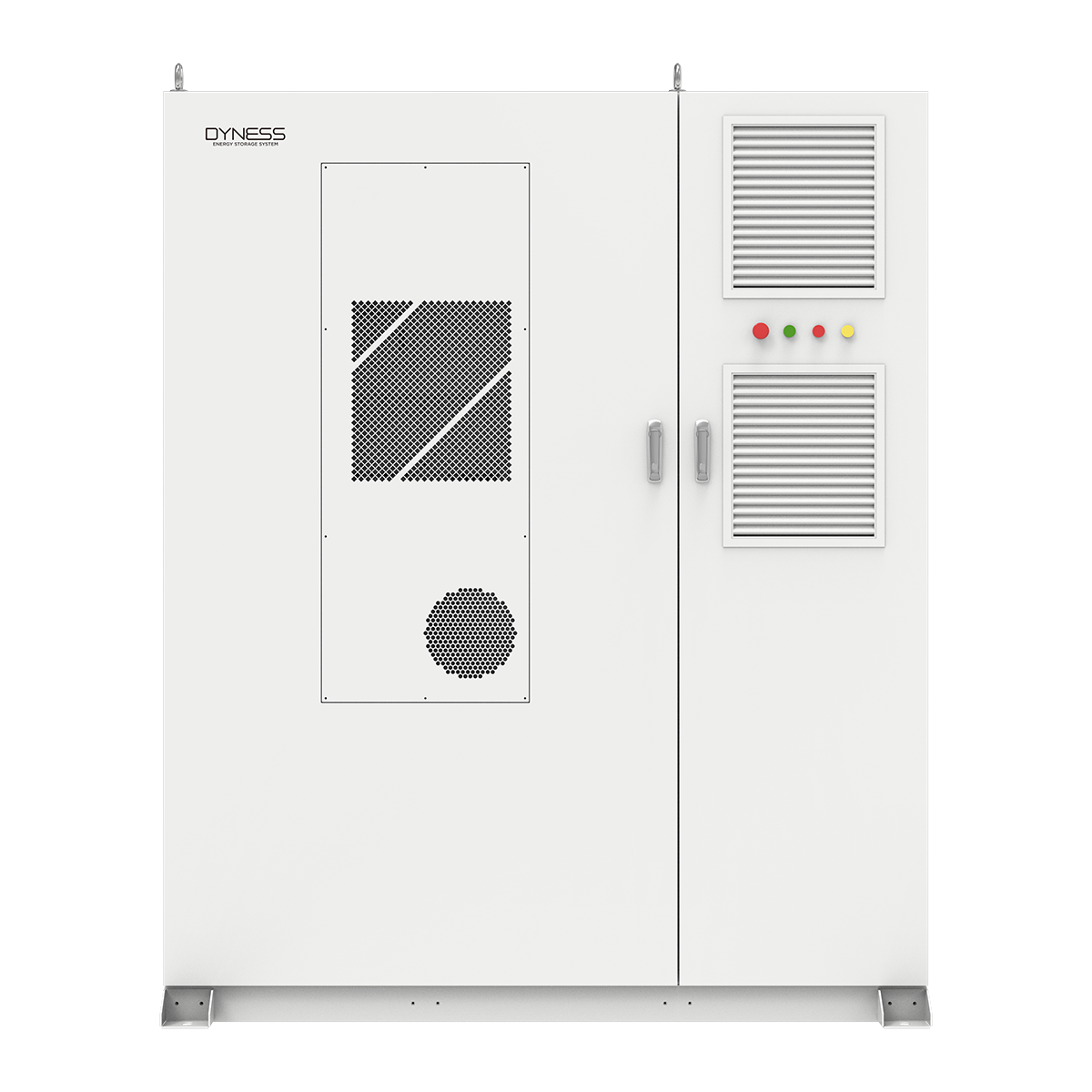

Dyness 100KW All-In-One System DH200F Three Phase HV
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (30km) distance in Gauteng | Delivery Only. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.
R1644500.00 R1950500.00
In Stock, Note: All of our prices are Including VAT. Same day FREE DELIVERY (30km) distance in Gauteng | Delivery Only. If this product is purchased and no stock is available, our team will contact you with the option of a full refund or suggest an available alternative. Should you wish to confirm stock availability before purchase, click the WhatsApp button below to chat with the team.
All-in-one integrated system design inside the Cabinet to fulfill C&I scenarios.
DH200F can provide industrial and commercial users with a complete solution of outdoor integrated PV& energy storage system. It can be widely used in scenarios such as charging stations, factories, industrial parks, and commercial buildings.
| Battery Specifications | |
|---|---|
| Battery Module Type | HV51280F |
| Cell Capacity | 280Ah |
| Battery Voltage Range | 672~864V |
| Nominal Current | 140A (0.5C) |
| System Storage Power | 215kWh |
| AC Specifications (on-grid) | |
| Nominal Power | 100kW |
| AC Nominal Voltage | 400V |
| Wiring | 3P4L+PE |
| Nominal Frequency | 50Hz |
| AC Maximum Current | 158A |
| Max.number of BESS in parallel | 12 |
| AC Specifications (off-grid) | |
| Nominal Power | 100kW |
| AC Nominal Voltage | 400V |
| Wiring | 3P4L+PE |
| Nominal Frequency | 50Hz |
| AC Maximum Current | 158A |
| Unbalanced Load Capacity | 100% |
| On-grid Switching to Off-grid Time | ＜20ms |
| Off-grid Switching to On-grid Time | ＜20ms |
| Max.number of BESS in parallel | 5 |
| Photovoltaic Input | |
| MPPT Voltage Range | 200-670V |
| MPPT channels | Up to three |
| Input Power | Single channel 50kW |
| System Specifications | |
| Dimensions(W*D*H) | 1850*1200*2250mm |
| Weight | ≈3300kg |
| Air Conditioner Power | 3kW (Cooling capacity) |
| Operation Temperature | -20~50°C |
| Operation Humidity | 0~95%(Non-condensing) |
| Protection Level | IP55 |
| Anti-corrosion Level | C3 |
| Noise Level | ≤75dB |
| Altitude | ≤3000m |
| Cooling System | Fan Cooling |
| Display | Touch screen (optional) |
| Firefighting | Aerosol/Heptafluoropropane (FM-200)/Perfluoro |
| EMS Communication | Ethernet |
| Certification | CE/CQC |
| Weight | 3300.00 kg |
|---|
